Circular saw Bernardo TK315F with trolley 2000 mm
  • Circular saw Bernardo TK315F with trolley 2000 mm
  • Circular saw Bernardo TK315F with trolley 2000 mm
  • Circular saw Bernardo TK315F with trolley 2000 mm

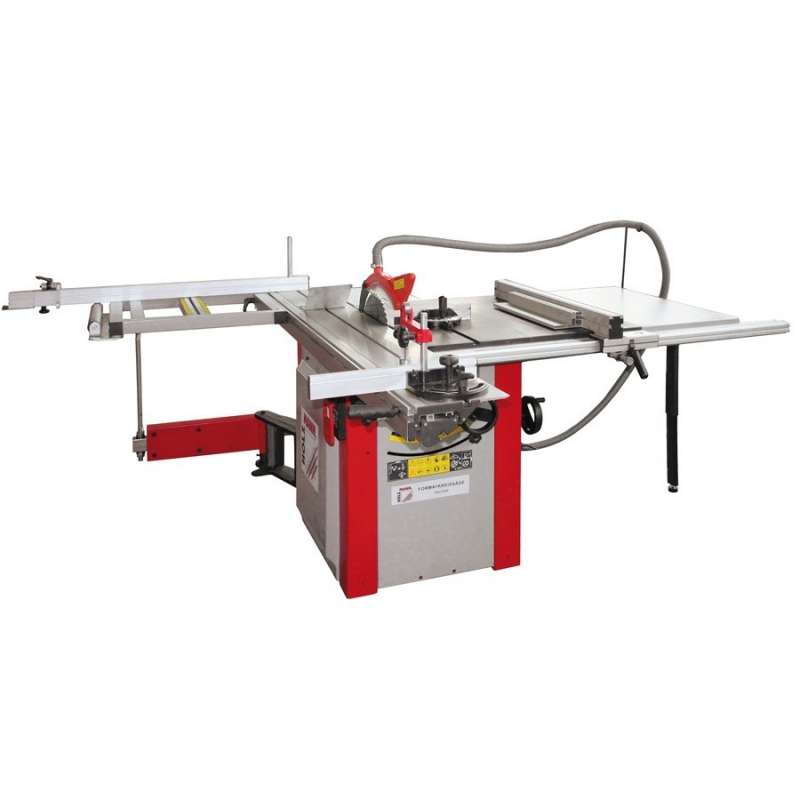

Table Holzmann TS315VF with trolley 2000 mm circular saw

€2,168.33
1,995.83 Save €170.00

Including €2.50 for ecotax (not impacted by the discount)

Reference: HTS315VF-2000

The Holzmann TS315VF format saw is a powerful machine with massive construction.

Engine voltage
Quantity
in stock, delivery within 4 to 6 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Holzmann TS315VF table saw is equipped with a large 2000 mm wide blade-type trolley with telescopic ruler!

It has a cutting height of 100 mm. The scoring machine ensures work without splinters in the delicate panels to be machined. Gray cast iron tables ensure perfect stability. Equipped with rear extension, side and support leg for working large wooden panels.

The advantages of the Holzmann TS315VF table saw:

  • The scorer placed in front of the blade facilitates the cutting of melamine panels and avoids the bursting of surface coatings.
  • Side table extensions increase cutting capacity and maintain large panels.
  • The corner guide has stops at 90 ° and 45 °.
  • The parallel guide is easily locked by a single lever and is equipped with a micrometer screw adjustment.
  • The blade carriage also has a corner guide that slides into the slot of the carriage and locks in this position.
  • 1 presser blocks the pieces resting on the table.
  • The aluminum profile guide adjusts according to the cutting angle and includes an extension up to 2200 m / m.
  • The engine block is securely held in a tilting cast iron frame and increases work precision.
  • The cart extension is equipped with a roller for easy handling of long pieces.

Comes with: Carbide blade 315 mm, 40 teeth - scoring machine, eccentric presser, precision guide, extensions ...

Specifications of the Holzmann TS315VF table saw:

  • Speed ​​4000 rpm
  • Speed ​​of the scoring machine: 5800 rpm
  • Blade diameter: 315 mm
  • Bore of the blade: 30 mm
  • Scorer diameter: 90 mm
  • Boring scorer: 20 mm
  • Cutting capacity 90 º: 100 mm
  • Cutting capacity 45 º: 80 mm
  • Trolley stroke: 2000 mm
  • Capacity between guide and blade: 1250 mm
  • Diameter of the suction nozzle: 100 mm
  • Size: 2000 x 2800 x 1200 mm
  • Weight: 260 Kg

230V or 400V motor power:

  • S1 100% = 3.0 KW (4 HP)
  • S2 40% = 4.2 KW (5.7HP)
HTS315VF-2000-230
2 Items

Data sheet

Delivery
Free shipping

Specific References

EAN13
9120039903934
