Planer and thicknesser Bernardo AD260S with helical shaft - 400V

1,985.00 €

Including €2.50 for ecotax

Reference: BAD260S-400V

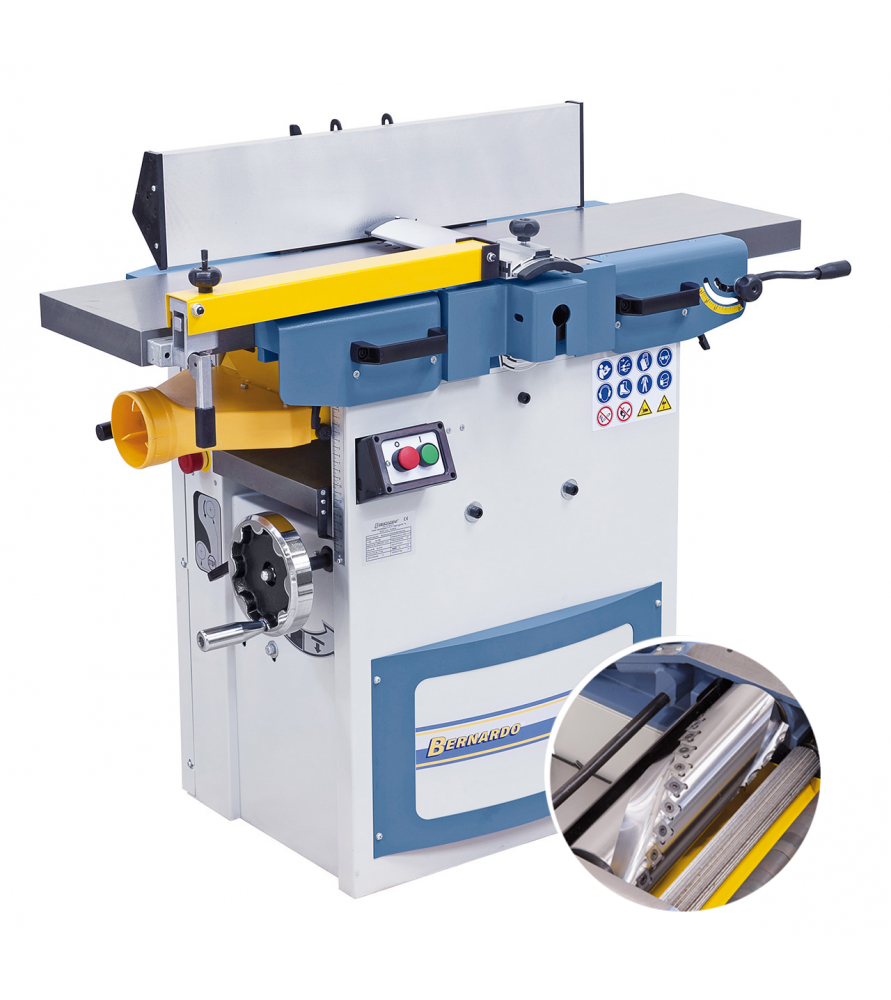

The Bernardo AD260S planer jointer naturally meets the requirements for stability, high power and safety. The other strong point of this machine is its helical knife planer shaft which reduces noise stress and ensures optimum results.

Quantity

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo AD260S planer jointer with helical shaft:

  • Reduced noise stress (by about 50%) thanks to standard helical knife planer shaft and up to 20 times longer knife life (thanks to four-times reusable carbide reversible inserts)
  • Advantage of reversible carbide inserts: In the event of damage, the individual knives can be replaced or rotated
  • Planing tables fold down at the rear of the machine, allowing space-saving installation
  • Carbide knives guarantee crack-free planing results and top-quality surfaces for all types of wood
  • Simultaneous lifting of the planing tables for maximum ease of use
  • Table feed can be deactivated for planing
  • Anodized aluminum guide, tilting from 90° to 45°
  • Planer table on central column and support for precise planing
  • Numerous protective devices: on/off switch with undervoltage coil, CE-compliant shaft protector, limit switch against accidental starting

Technical characteristics of the Bernardo AD260S planer jointer with helical shaft:

jointer

  • Cutting width: 250mm
  • Table length: 1090 mm
  • Table height: 835 mm
  • Shaft speed: 4000 rpm
  • Carbide reversible inserts: 24
  • Shaft diameter: 75mm
  • Guide: 715 x 130mm
  • Tilting guide: 90° to 45°
  • Maximum removal per pass: 3 mm

Planer

  • Table length: 600 mm
  • Planer width: 250 mm
  • Planing height, min/max: 5 - 185 mm
  • Removal per pass max: 2.5 mm
  • Feed rate: 4.8 m/min
  • Ø suction nozzle: 100 mm
  • Continuous power S1 100%: 2.0 kW (2.7 hp)
  • Power S6 40%: 2.8 kW (3.8 hp)
  • Voltage: 400V
  • Dimensions (LxWxH): 1150 x 800 x 1000 mm
  • Weight (approx.): 173 kg
