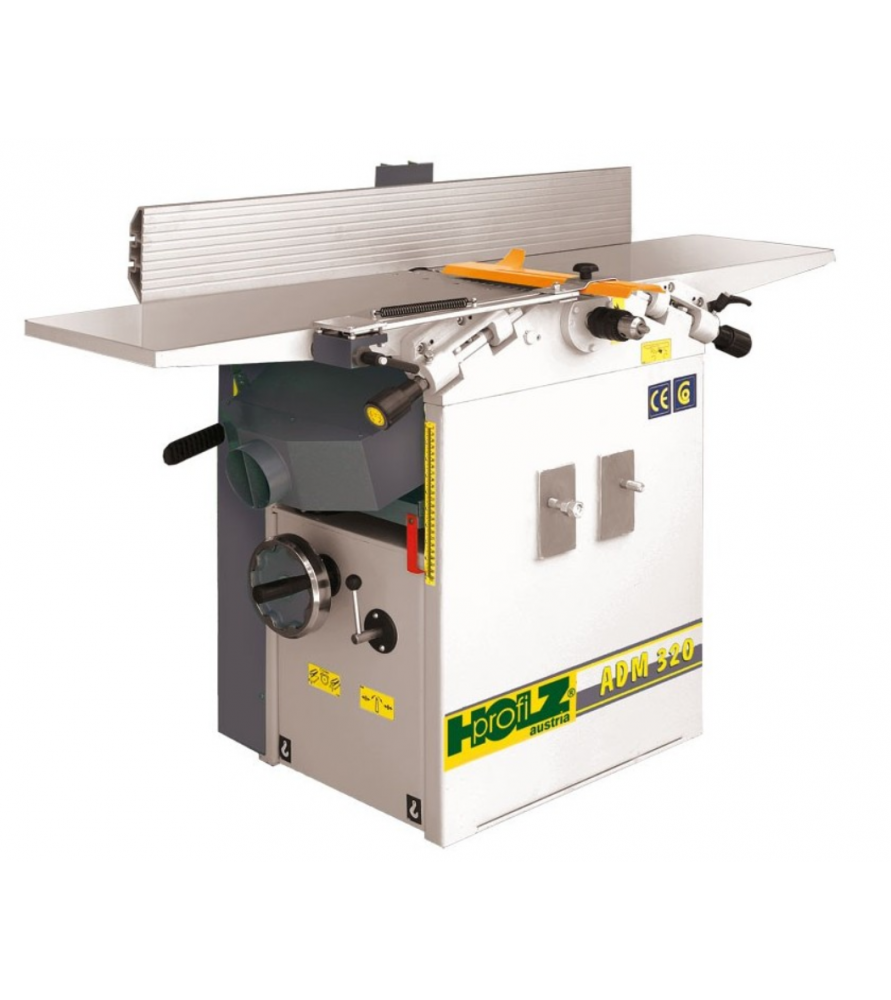

The planer and thicknesser Holzprofi ADM320 is a professional model!

This machine is dedicated to carpenters and handymen or amateurs aware of the quality of their machines. The long aluminum tilting perpendicular guide is fixed in such a way that it is not necessary to remove it in planing mode. This machine is powerful and stable which provides a high precision work. The large diameter of the central block with direct locking of the table is completed by a guide bar. A mechanical counter for precise adjustment of the planing table is included.

Important recommendation of Probois for many woodworking machines:

• Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
• Always use an extension cord of 2.5² wire size
• The extension must not exceed 10 meters and must not be rolled
• Provide an electrical meter with special fuses at least 16A starting
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and machine warranty
• Always grease the cast iron tables with slip-wood
• Always work with the protections in place
• Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt

General description of the jointer planer Holzprofi ADM320:

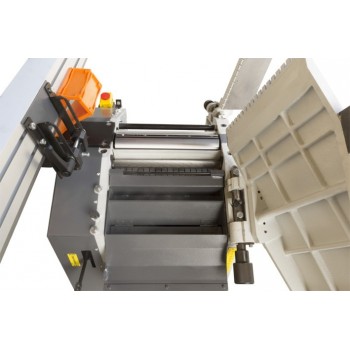

• Rectified cast iron tables with vertical opening which makes it easier to change the planing position to the planing position.
• Thick welded sheet metal frame.
• The long tilting perpendicular aluminum guide is fixed in such a way that it does not have to be removed to go into planing mode.
• These machines are powerful and stable which gives a high precision work.
• The large diameter of the direct locking center shaft of the table is completed by a guide bar.
• Delivered with mounted and sharpened irons

Technical characteristics of the Holzprofi ADM320 planer jointer:

• Length of the roughing table: 1500 mm
• Threshold width: 320 mm
• Length of the planer table: 700 mm
• Max. : 320 mm
• Planing height max. : 225 mm
• Height Reading: Mechanical Counter
• Blade guide dimensions: 1100x155mm
• Tilt guide inclination: 0 - 45 °
• Diameter of the tree: 80 mm
• Speed ​​of rotation of the shaft: 5600 rpm
• Number of shoes: 3
• Advance speed disengageable: 7 m / min
• Sun advance rollers: 40 mm
• Chip taking max. dew: 4mm
• Chip taking max. planing: 3mm
• Working height 1050 mm
• Motor power mono or tri / 50Hz: 2.2 Kw (3CV)
• Diameter of the suction nozzle: 120 mm
• Overall dimensions: 1520 x 650 x 1050mm
• Weight: 260 kg

Good to know: Three-phase machines (3-phase, neutral and earth) are usually delivered without a plug. When mounting, be careful not to connect the wires upside down to avoid damaging the mechanical system! See the correct outlet: phase.

VERY IMPORTANT FOR DELIVERY!

The delivery of this very heavy planer jointer (about 300 kg) requires a big truck with rags! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that we can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.

The machine arrives in a wooden crate. Our prices do not include assembly or installation. It is advisable to have your electrical installation checked by a professional to make sure that it can support the power of this machine so as not to damage it by an unsuitable meter.
