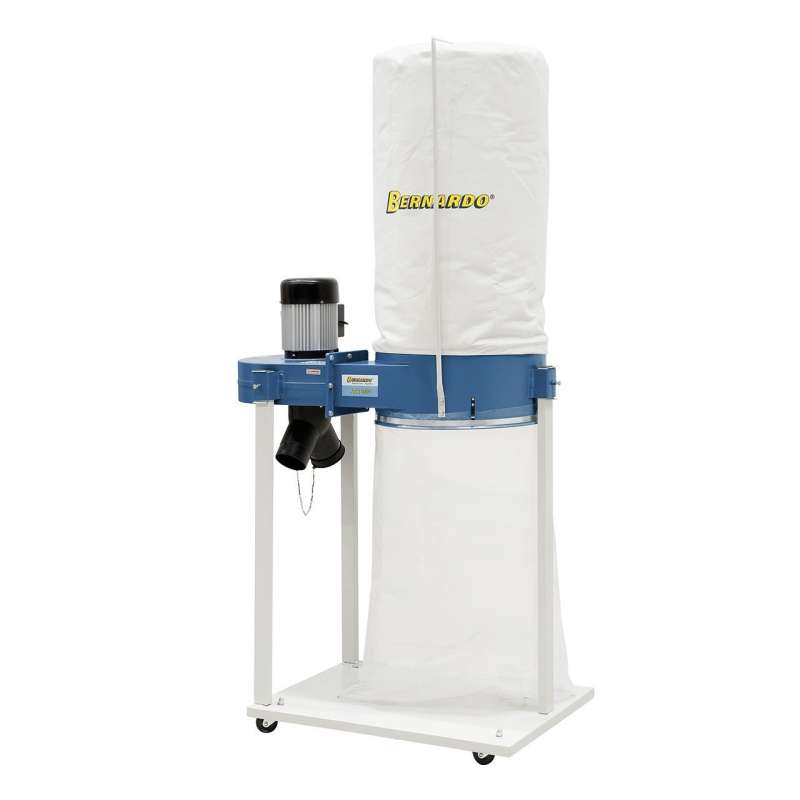

Dust collector Bernardo ASA3500
  • Dust collector Bernardo ASA3500
  • Dust collector Bernardo ASA3500
  • Dust collector Bernardo ASA3500
  • Dust collector Bernardo ASA3500
  • Dust collector Bernardo ASA3500
  • Dust collector Bernardo ASA3500

Dust collector Bernardo ASA3500

€557.50
495.00 € Tax included Save €60.00

Including €2.50 for ecotax (not impacted by the discount)

Reference: BASA3500-3M

The dust collector Bernardo ASA3500 is a dust collector that can be connected to 2 machines at the same time, with a 1500W motor and a suction power of 2530 m³ / h!

Quantity
in stock, delivery within 4 to 6 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

A chip dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level vacuum cleaner.
On the other hand, the larger the size of the machines on which dust collector is to be connected, the more it will be necessary to choose a vacuum cleaner with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. stuffing assured!

Take note of the characteristics of this Bernardo ASA3500 dust collector!

General description:

  • Ideal device for chip extraction.
  • Connectable to two machines simultaneously
  • Generous chip bag volume that increases usability.
  • Aerodynamically shaped, the sheet steel turbine ensures superior performance
  • Clamping strap for convenient and quick bag change.
  • Mobile with its wheels.

Technical specifications of dust collector Bernardo ASA3500:

  • Suction flow rate: 2530 m³ / h
  • Filtration area: 1.45 m²
  • Maximum depression: 1800 Pa
  • ø suction nozzle: 1 x 130 mm / 2 x 100 mm
  • Bag capacity: 165 liters
  • Idling speed: 2950 rpm
  • Sound volume: 87 dB
  • Continuous power S1 100%: 1.5 kW (2.0 HP)
  • Power S6 40%: 2.1 kW (2.8 HP)
  • Voltage: 230V or 400V / 50Hz
  • Size: 1000 x 600 x 1950 mm
  • Weight approx: 37 kg

The dust collector Bernardo ASA3500 comes with:

  • Filter bag
  • Recovery bag
  • Y-sleeve 1 x 150 mm / 3 x 100 mm
