A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level vacuum cleaner.
On the other hand, the larger the size of the machines on which the vacuum cleaner is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the vacuum cleaner is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

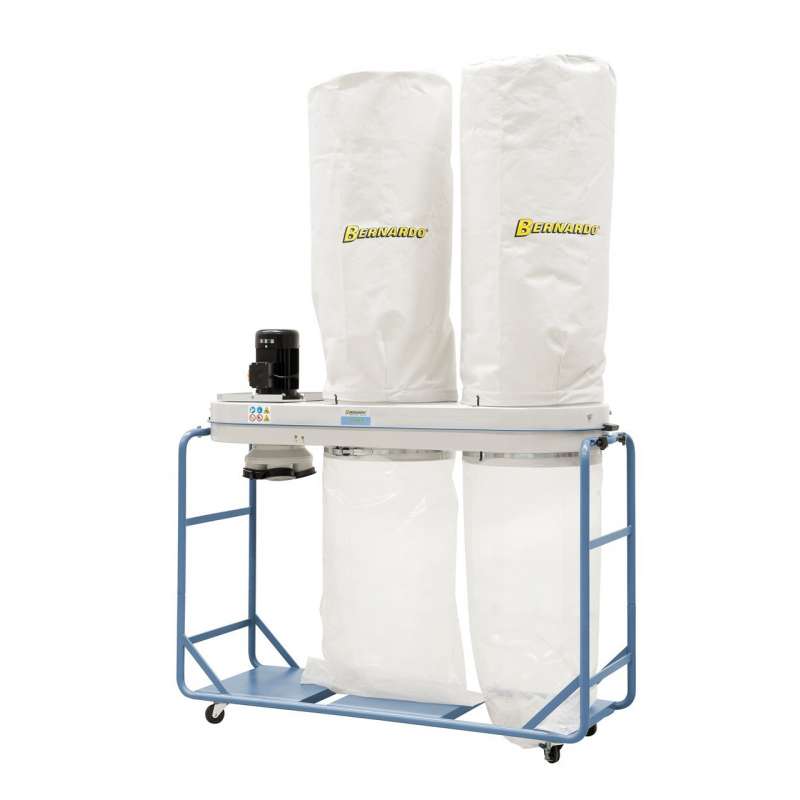

Take a good look at the characteristics of this dust collector Bernardo FT302N!

General description :

• Constant suction power even during prolonged operation
• Increases the performance of woodworking machines
• Ideal for recovering chips from saws, planing planers, etc.
• Simultaneous connection of four machines
• Moveable thanks to its wheels

Technical specifications of the dust collector Bernardo FT302N:

• Suction flow: 4200 m³ / h
• Filtration area: 4.8 m²
• Maximum depression: 1800 Pa
• Aspiration Ø: 4 x 100 mm
• Bag capacity: 2 x 175 liters
• Idling speed: 2950 rpm
• Sound volume: 87 dB
• Continuous power of the S1 100% engine: 3.0 kW (4.0 hp)
• Engine power S6 40%: 3.8 KW (5.1 hp)
• Voltage: three-phase 400V / 50 Hz
• Dimensions of the machine (B x T x H): 1700 x 600 x 2400 mm
• Weight approx: 69 kg

The dust collector Bernardo FT302N comes with:

• Filter bag
• Recovery bag
• Forklift
