Mortaiseuse à bédane carré inclinable Bernardo HM25 Top (socle en option)

Mortiser square chisel tilting Holzmann STM26S

Reference: HSTM26S

999.00 €

Including €2.50 for ecotax

Tax included

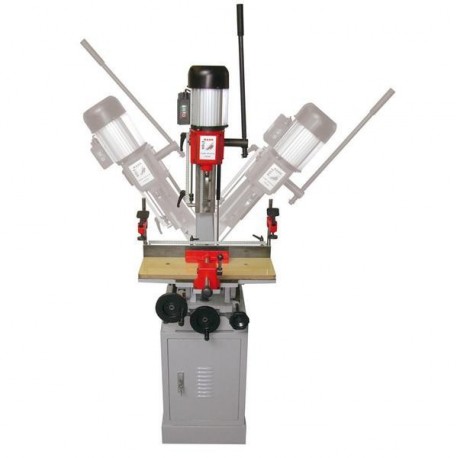

The mortiser to square chisel Holzmann STM26S has the same features as its competitors, the tilting head on the right and on the left!

Quantity
Factory shipment, delivery within 12 to 15 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The mortiser chisel Holzmann STM26S has the advantage of having its tilting head to the right and to the left!

The advantages of this Holzmann machine offer indisputable accuracy and impeccable working comfort.

Advantages of the mortiser at chisel at tilting head:

  • Cross table "well thought" mounted dovetail catching game (run 180 m / m lateral and 130 m / m transverse) for a very high precision in your work.

  • The cast iron column, with a large section, supports the sliding head mounted on a dovetail.
  • A compensating jack for raising and lowering the head.
  • The column as well as the lateral movement of the table are equipped with a millimetric rule with stop to satisfy all your repetitive works.
  • Rotating the column 180 ° to easily accomplish all your off-table work.
  • 2 vertical pressers for optimal maintenance of your room (200m / m under the pressers).
  • Reclining head 22.5 ° right and left
  • High power asynchronous motor (750W) with a rotation capacity of 1400 rpm for perfect chip clearance even for larger mortise sections.

Technical characteristics of the mortiser at chisel at tilting head:

  • W x W x H mm: 570 x 650 x 1115 mm (without the base)
  • Table dimensions W x W: 540 x 190
  • Table setting L / P mm: 170/140
  • Height / Max wood width: 270x185 mm
  • Inclination of the right and left head: 22.5 ° / 22.5 °
  • Drilling stroke mm: 230
  • mandrel opening ø mm: 16
  • Drilling depth mm: 76
  • Bedane (tail ø) mm: 19
  • Chestnut diameter max: 25 mm
  • Speed ​​of rotation: 1400 rpm
  • Single power motor absorbed P1 W: 750 (1 HP)
  • Weight kg: 110 kg without the base

The Mortiser Chisel Holzmann STM26S comes with:

  • Case
  • 16 mm chisel
  • Service Keys

This Holzmann STM26S Tilting Chisel Slotting Machine is exactly the same machine as the Bernardo HM25 Top brand that you can see: by clicking here!
