Perceuse à colonne Bernardo DMT25 - 400V

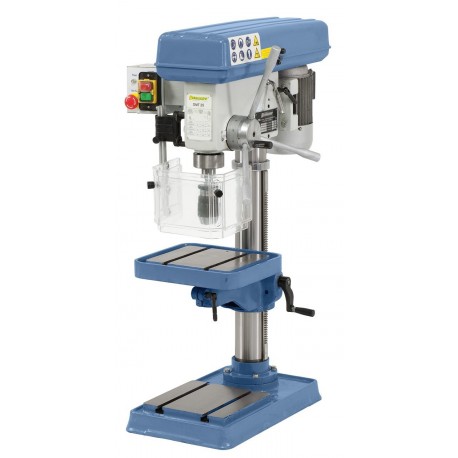

Bench drill Bernardo DMT25 - 400V

Reference: BDMT25-400V

1,179.00 €

Including €2.50 for ecotax

Tax included

The bench drill Bernardo DMT25 in three phase is intended to lovers savvy and professional, offering 25 mm drilling capacity in steel and boasting a powerful engine!

Quantity
Factory shipment, delivery within 10 to 12 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo DMT25 bench drill press is equipped with a powerful motor even with continuous operation!

Advantages of the Bernardo DMT25 bench drill press:

  • Surface treated work table, height adjustable by rack and crank.
  • Base with T-slots for mounting large parts.
  • Belt with balanced pulleys for a good workout.
  • Adjustable depth stop for precise pin feeding
  • High concentricity ≤ 0.02 mm measured at the spindle
  • Powerful motor even with continuous operation
  • Solid machine for industrial use

Technical specifications of the Bernardo DMT25 bench drill press:

  • 25 mm steel drilling capacity
  • Chuck: 1-16 mm / B 18
  • Morse taper: MT 3
  • Spindle speed: 9 speeds of 240 - 1820 rpm
  • Distance axis of the column: 180 mm
  • Distance spindle to table max. : 360 mm
  • Distance spindle at the base: 600 mm
  • Spindle stroke: 95 mm
  • Diameter of the column: 85 mm
  • Size / size table T-slot: 310 x 280 mm / 14 mm
  • Work surface of the base: 250 x 250 mm
  • Output motor power S1 1 100%: 1,1 kW / 400V
  • S6 40% power input: 1.6 kW / 400V
  • Dimension of the machine (W x D x H): 400 x 660 x 1060 mm
  • Weight approx. : 105 kg

Accessories included with the Bernardo DMT25 bench drill press:

  • Chuck 1-16 mm / B 18
  • MT 3 / B 18 arbor chuck
  • Height-adjustable protective cover
  • Separate emergency stop switch
  • Tools
