Perceuse à colonne Bernardo BM25T

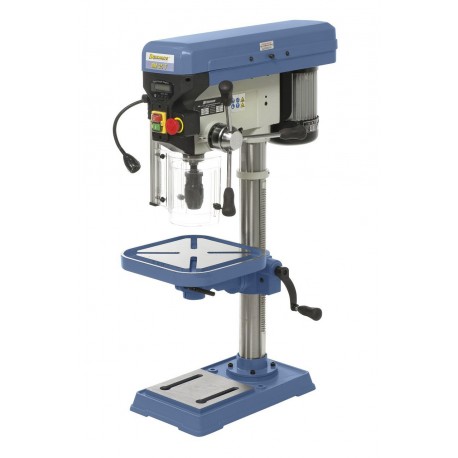

Bench drill Bernardo BM25T

Reference: BBM25T

589.00 €

Including €2.50 for ecotax

Tax included

The bench drill Bernardo BM25T offers a drilling capacity of 25 mm with digital display and LED lamp, an ideal tool for the amateur!

Tension du moteur
Quantity
Factory shipment, delivery within 10 to 12 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo BM25T bench drill press is a machine equipped with a digital display for the spindle and LED lamp run.

This digital display gives the machine remarkable accuracy!

Advantages of the Bernardo BM25T bench drill press:

  • Digital display for spindle stroke and LED lamp
  • Gray cast iron blocks for smooth running
  • High quality ball bearings guaranteeing a high concentricity of ≤ 0.03 mm measured at the spindle
  • Large drilling table features t-diagonal slots.
  • Inclination of the drilling table (± 45 °), the rack allows adjustment in height.
  • High performance motor according to IP 54
  • Base of machine with T slots
  • Handles providing great comfort when using

Technical specifications of the Bernardo BM25T bench drill press :

  • 25 mm steel drilling capacity
  • Chuck: 1-16 mm / B 18
  • Morse taper: MT 2
  • Spindle speed: (16) 180 - 2770 rpm
  • Distance axis of the column: 180 mm
  • Tilting table: -45 ° to + 45 °
  • Distance spindle to table max. : 415 mm
  • Distance from the spindle to the base: 605 mm
  • Spindle stroke: 80 mm
  • Diameter of the column: 72 mm
  • Size chart / size T-slot: 305 x 305 mm / 16 mm
  • Work surface of the base: 205 x 205 mm
  • Output motor power S1 1 100%: 0,75 kW / 230V or 400V as desired
  • S6 motor power input 40%: 1,1 kW / 230V or 400V as desired
  • Dimension of the machine (W x D x H): 400 x 630 x 990 mm
  • Weight approx. : 57 kg

The Bernardo BM25T bench drill press comes with :

  • Chuck 1-16 mm / B 18
  • MT shaft chuck 2 / B 18
  • Digital pin indication of race
  • T-slot nuts
  • Height-adjustable protective cover
  • Separate emergency stop switch
  • Tools
